Getting started: Skeleton analysis with Skan#

Skeleton analysis allows us to measure fine structure in samples. In this case, we are going to measure the network formed by a protein called spectrin inside the membrane of a red blood cell, either infected by the malaria parasite Plasmodium falciparum, or uninfected.

0. Extracting a skeleton from an image#

Skan’s primary purpose is to analyse skeletons. (It primarily mimics the “Analyze Skeleton” Fiji plugin.) In this section, we will run some simple preprocessing on our source images to extract a skeleton, provided by Skan and scikit-image, but this is far from the optimal way of extracting a skeleton from an image. Skip to section 1 for Skan’s primary functionality.

First, we load the images. These images were produced by an FEI scanning electron microscope. ImageIO provides a method to read these images, including metadata.

from glob import glob
import imageio as iio

files = glob('../example-data/*.tif')
image0 = iio.imread(files[0], format='fei')
/tmp/ipykernel_11151/ DeprecationWarning: Starting with ImageIO v3 the behavior of this function will switch to that of iio.v3.imread. To keep the current behavior (and make this warning dissapear) use `import imageio.v2 as imageio` or call `imageio.v2.imread` directly.
  image0 = iio.imread(files[0], format='fei')

We display the images with Matplotlib.

import matplotlib.pyplot as plt

%matplotlib inline
%config InlineBackend.figure_format='retina'

fig, ax = plt.subplots()

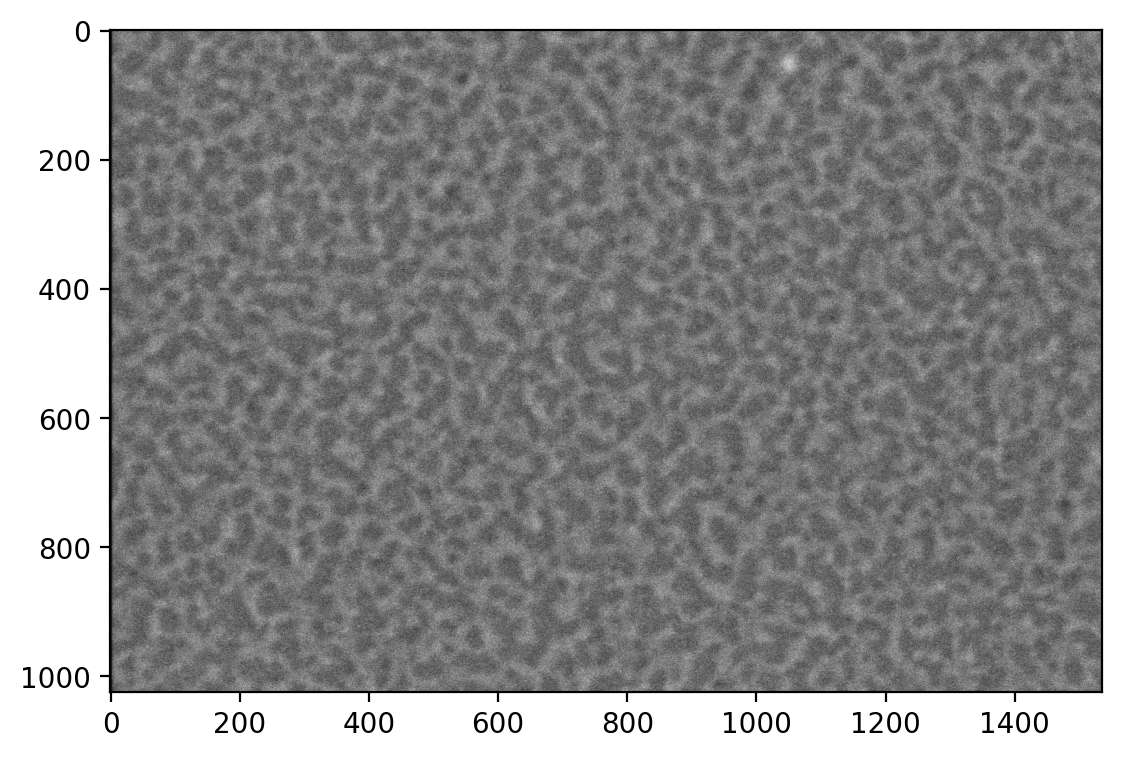

ax.imshow(image0, cmap='gray');

As an aside, we can extract the pixel spacing in meters from the .meta attribute of the ImageIO image:

import numpy as np

spacing = image0.meta['Scan']['PixelHeight']
spacing_nm = spacing * 1e9  # nm per pixel
dim_nm = np.array(image0.shape) / spacing_nm

fig, ax = plt.subplots()

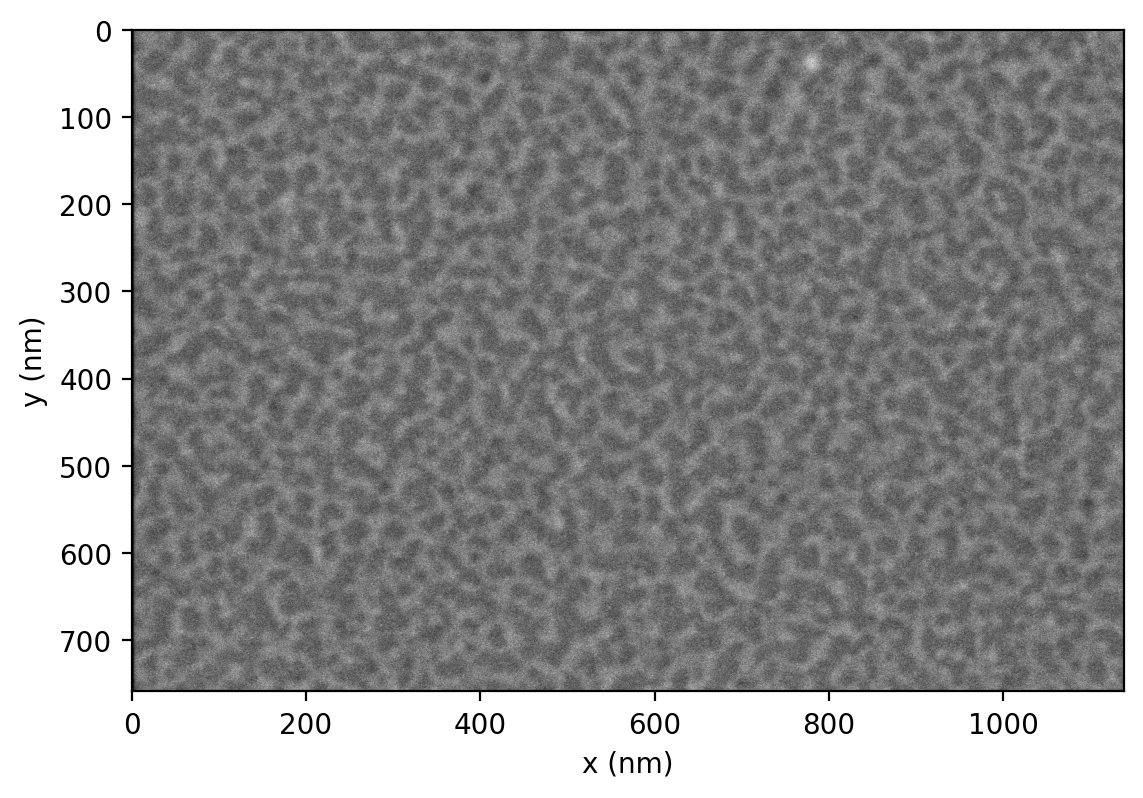

ax.imshow(image0, cmap='gray',
          extent=[0, dim_nm[1], dim_nm[0], 0]);
ax.set_xlabel('x (nm)')
ax.set_ylabel('y (nm)');

This is an image of the inside of the membrane of a red blood cell. We want to measure the network of bright regions in this image, which is made up of a protein called spectrin. Our strategy will be to:

  • smooth the image with Gaussian smoothing

  • threshold the image with Sauvola thresholding (Otsu thresholding also works)

  • skeletonise the resulting binary image

These steps can be performed by a single function in Skan, skan.pre.threshold. We use parameters derived from the metadata, so that our analysis is portable to images taken at slightly different physical resolutions.

from skan.pre import threshold

smooth_radius = 5 / spacing_nm  # float OK
threshold_radius = int(np.ceil(50 / spacing_nm))

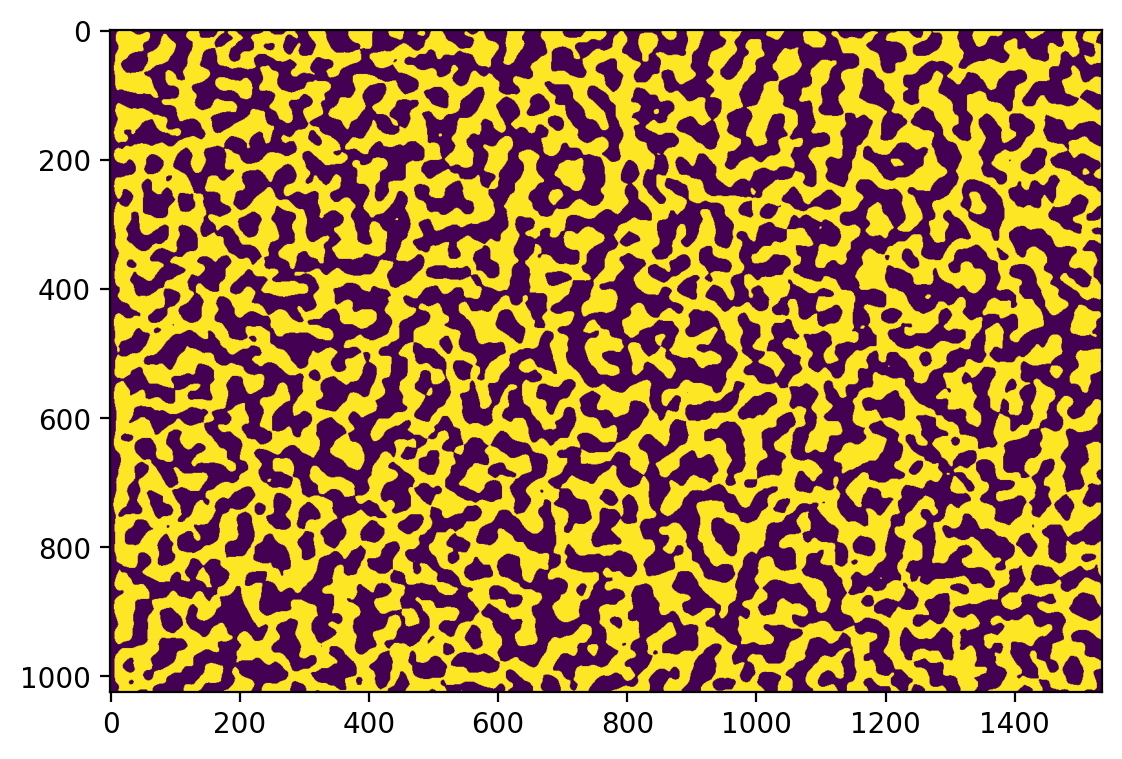

binary0 = threshold(image0, sigma=smooth_radius,

fig, ax = plt.subplots()

(There are some thresholding artifacts around the left edge, due to the dark border caused by microscope imaging drift and alignment. We will ignore this in this document, but the Skan GUI allows for a “crop” parameter to filter out these regions.)

Finally, we skeletonise this binary image:

from skimage import morphology

skeleton0 = morphology.skeletonize(binary0)

Skan has functions for drawing skeletons in 2D:

from skan import draw

fig, ax = plt.subplots()

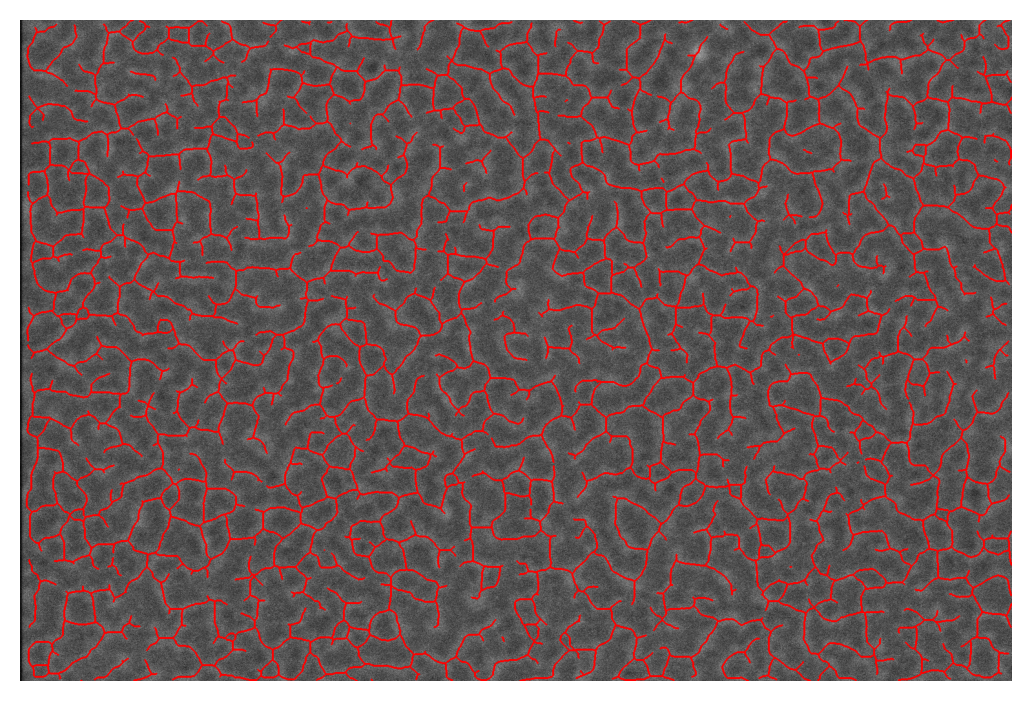

draw.overlay_skeleton_2d(image0, skeleton0, dilate=1, axes=ax);

1. Measuring the length of skeleton branches#

Now that we have a skeleton, we can use Skan’s primary functions: producing a network of skeleton pixels, and measuring the properties of branches along that network.

from skan import skeleton_to_csgraph

pixel_graph, coordinates = skeleton_to_csgraph(skeleton0)

The pixel graph is a SciPy CSR matrix in which entry $(i, j)$ is 0 if pixels $i$ and $j$ are not connected, and otherwise is equal to the distance between pixels $i$ and $j$ in the skeleton. This will normally be 1 between adjacent pixels and $\sqrt{2}$ between diagonally adjacent pixels, but in this can be scaled by a spacing= keyword argument that sets the scale (and this scale can be different for each image axis). In our case, we know the spacing between pixels, so we can measure our network in physical units instead of pixels:

pixel_graph0, coordinates0 = skeleton_to_csgraph(skeleton0, spacing=spacing_nm)

The second variable contains the coordinates (in pixel units) of the points in the pixel graph. Finally, degrees is an image of the skeleton, with each skeleton pixel containing the number of neighbouring pixels. This enables us to distinguish between junctions (where three or more skeleton branches meet), endpoints (where a skeleton ends), and paths (pixels on the inside of a skeleton branch.

These intermediate objects contain all the information we need from the skeleton, but in a more useful format. It is still difficult to interpret, however, and the best option might be to visualise a couple of minimal examples. Skan provides a function to do this. (Because of the way NetworkX and Matplotlib draw networks, this method is only recommended for very small networks.)

from skan import _testdata
g0, c0 = skeleton_to_csgraph(_testdata.skeleton0)
g1, c1 = skeleton_to_csgraph(_testdata.skeleton1)

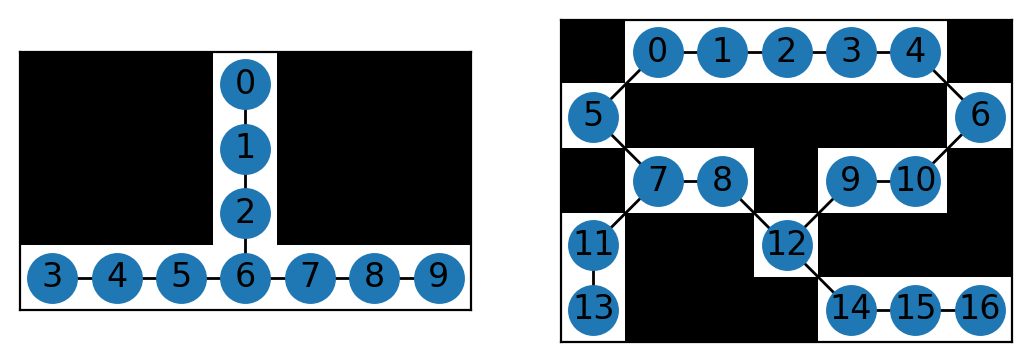

fig, axes = plt.subplots(1, 2)

draw.overlay_skeleton_networkx(g0, np.transpose(c0), image=_testdata.skeleton0,
draw.overlay_skeleton_networkx(g1, np.transpose(c1), image=_testdata.skeleton1,
KeyError                                  Traceback (most recent call last)
File ~/miniconda3/envs/skan_doc/lib/python3.9/site-packages/networkx/drawing/, in draw_networkx_nodes(G, pos, nodelist, node_size, node_color, node_shape, alpha, cmap, vmin, vmax, ax, linewidths, edgecolors, label, margins)
    455 try:
--> 456     xy = np.asarray([pos[v] for v in nodelist])
    457 except KeyError as err:

File ~/miniconda3/envs/skan_doc/lib/python3.9/site-packages/networkx/drawing/, in <listcomp>(.0)
    455 try:
--> 456     xy = np.asarray([pos[v] for v in nodelist])
    457 except KeyError as err:

KeyError: 2

The above exception was the direct cause of the following exception:

NetworkXError                             Traceback (most recent call last)
Input In [9], in <cell line: 6>()
      3 g1, c1 = skeleton_to_csgraph(_testdata.skeleton1)
      4 fig, axes = plt.subplots(1, 2)
----> 6 draw.overlay_skeleton_networkx(g0, np.transpose(c0), image=_testdata.skeleton0,
      7                                axis=axes[0])
      8 draw.overlay_skeleton_networkx(g1, np.transpose(c1), image=_testdata.skeleton1,
      9                                axis=axes[1])

File ~/Documents/Dev/skan/src/skan/, in overlay_skeleton_networkx(csr_graph, coordinates, axis, image, cmap, **kwargs)
    365 positions = dict(zip(range(coordinates.shape[0]), coordinates[:, ::-1]))
    366 _clean_positions_dict(positions, gnx)  # remove nodes not in Graph
--> 367 nx.draw_networkx(gnx, pos=positions, ax=axis, **kwargs)
    368 return axis

File ~/miniconda3/envs/skan_doc/lib/python3.9/site-packages/networkx/drawing/, in draw_networkx(G, pos, arrows, with_labels, **kwds)
    332 if pos is None:
    333     pos = nx.drawing.spring_layout(G)  # default to spring layout
--> 335 draw_networkx_nodes(G, pos, **node_kwds)
    336 draw_networkx_edges(G, pos, arrows=arrows, **edge_kwds)
    337 if with_labels:

File ~/miniconda3/envs/skan_doc/lib/python3.9/site-packages/networkx/drawing/, in draw_networkx_nodes(G, pos, nodelist, node_size, node_color, node_shape, alpha, cmap, vmin, vmax, ax, linewidths, edgecolors, label, margins)
    456     xy = np.asarray([pos[v] for v in nodelist])
    457 except KeyError as err:
--> 458     raise nx.NetworkXError(f"Node {err} has no position.") from err
    460 if isinstance(alpha, Iterable):
    461     node_color = apply_alpha(node_color, alpha, nodelist, cmap, vmin, vmax)

NetworkXError: Node 2 has no position.

For more sophisticated analyses, the skan.Skeleton class provides a way to keep all relevant information (the CSR matrix, the image, the node coordinates…) together.

The function skan.summarize uses this class to trace the path from junctions (node 3 in the left graph, 8 and 13 in the right graph) to endpoints (1, 4, and 10 on the left, and 14 and 17 on the right) and other junctions. It then produces a junction graph and table in the form of a pandas DataFrame.

Let’s go back to the red blood cell image to illustrate this graph.

from skan import Skeleton, summarize
branch_data = summarize(Skeleton(skeleton0, spacing=spacing_nm))

The branch distance is the sum of the distances along path nodes between two nodes, in natural scale (given by spacing).

The branch type is coded by number as:

  1. endpoint-to-endpoint (isolated branch)
  2. junction-to-endpoint
  3. junction-to-junction
  4. isolated cycle

Next come the coordinates in natural space, the Euclidean distance between the points, and the coordinates in image space (pixels). Finally, the unique IDs of the endpoints of the branch (these correspond to the pixel indices in the CSR representation above), and the unique ID of the skeleton that the branch belongs to.

This data table follows the “tidy data” paradigm, with one row per branch, which allows fast exploration of branch statistics. Here, for example, we plot the distribution of branch lengths according to branch type:

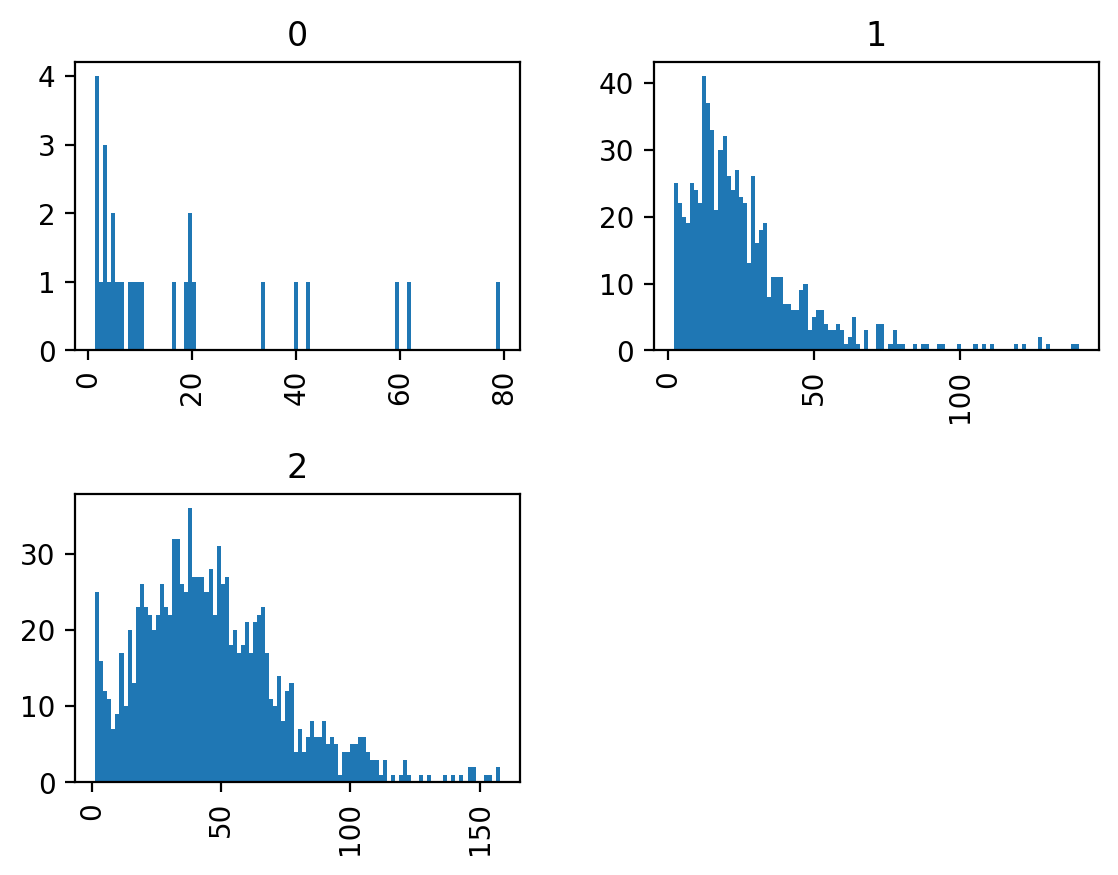

branch_data.hist(column='branch-distance', by='branch-type', bins=100);

We can see that junction-to-junction branches tend to be longer than junction-to-endpoint and junction isolated branches, and that there are no cycles in our dataset.

We can also represent this visually with the overlay_euclidean_skeleton, which colormaps branches according to a user-selected attribute in the table:

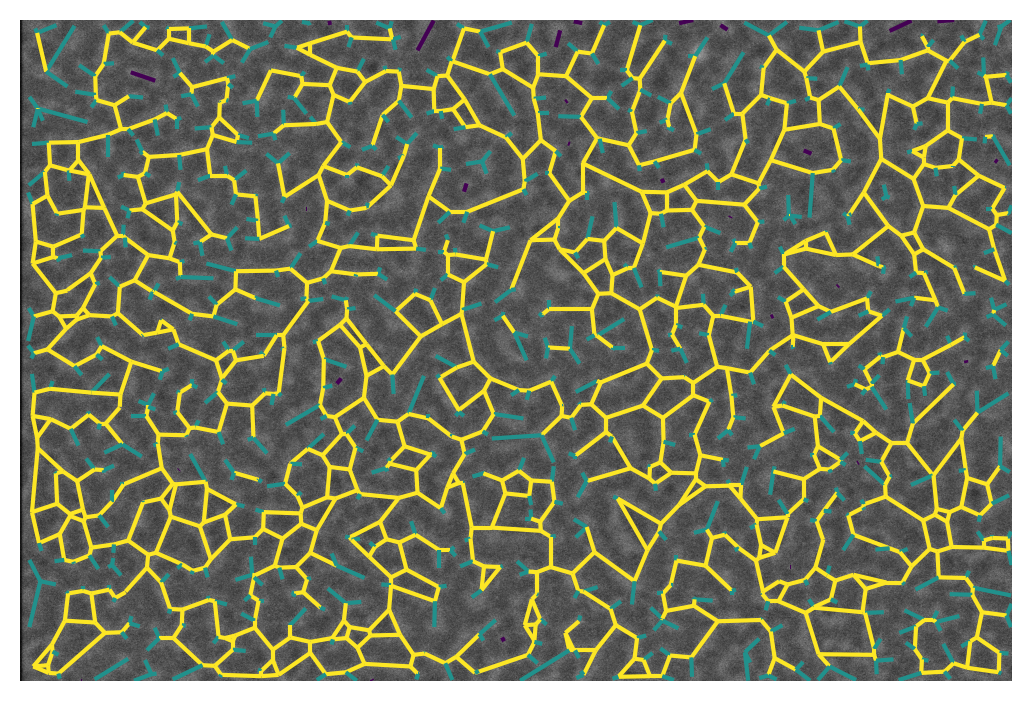

draw.overlay_euclidean_skeleton_2d(image0, branch_data,

2. Comparing different skeletons#

Now we can use Python’s data analysis tools to answer a scientific question: do malaria-infected red blood cells differ in their spectrin skeleton?

import pandas as pd

images = [iio.imread(file, format='fei')
          for file in files]
spacings = [image.meta['Scan']['PixelHeight']
            for image in images]
spacings_nm = 1e9 * np.array(spacings)

def skeletonize(images, spacings_nm):
    smooth_radii = 5 / spacings_nm  # float OK
    threshold_radii = np.ceil(50 / spacings_nm).astype(int)
    binaries = (threshold(image, sigma=smooth_radius,
                for image, smooth_radius, threshold_radius
                in zip(images, smooth_radii, threshold_radii))
    skeletons = map(morphology.skeletonize, binaries)
    return skeletons

skeletons = skeletonize(images, spacings_nm)
tables = [summarize(Skeleton(skeleton, spacing=spacing))
          for skeleton, spacing in zip(skeletons, spacings_nm)]

for filename, dataframe in zip(files, tables):
    dataframe['filename'] = filename

table = pd.concat(tables)

This analysis is quite verbose, which is why the skan.pipe module exists. It will be covered in a separate document.

Now, however, we have a tidy data table with information about the sample origin of the data, allowing us to analyse the effects of treatment on our skeleton measurement. We will use only junction-to-junction branches.

import seaborn as sns

j2j = (table[table['branch-type'] == 2].
                       'branch distance (nm)'}))
per_image = j2j.groupby('filename').median()
per_image['infected'] = ['infected' if 'inf' in fn else 'normal'
                         for fn in per_image.index]

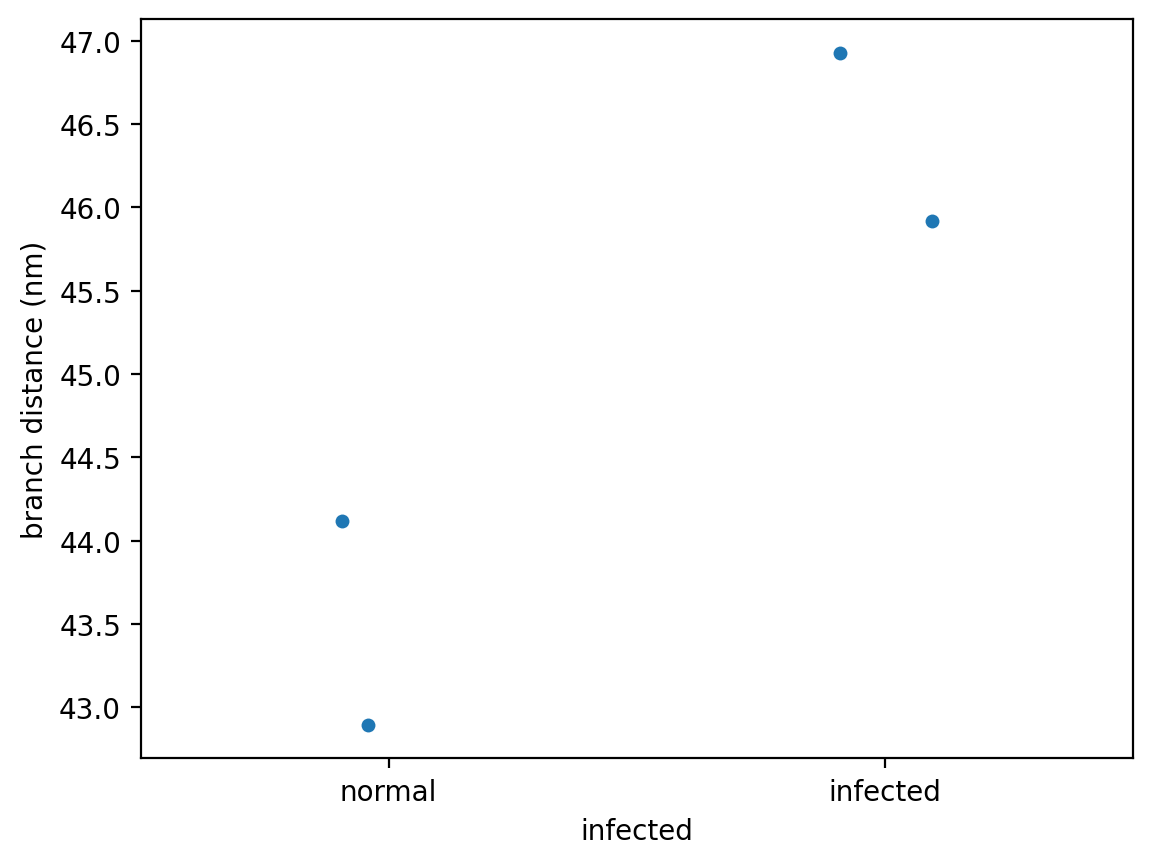

              x='infected', y='branch distance (nm)',
              order=['normal', 'infected'],

We now have a hint that infection by the malaria-causing parasite, Plasmodium falciparum, might expand the spectrin skeleton on the inner surface of the RBC membrane.

This is of course a toy example. For the full dataset and analysis, see:

But we hope this minimal example will serve for inspiration for your future analysis of skeleton images.

If you are interested in how we used numba to accelerate some parts of Skan, check out Juan’s talk at the SciPy 2019 conference at the the SciPy 2019 conference.
